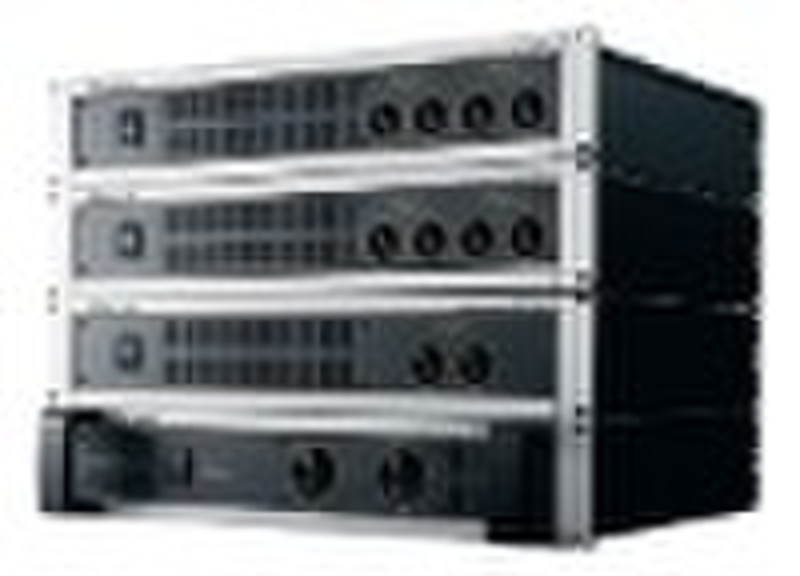

Amplifier

Amplifier Power output level 8Ω 180W×480W×41KHz 8Ω230W×4115W×4THDN=1% 8Ω/BRIDGE500W×2230W×2 70VBRIDGE RL=16Ω300×2-Sensitivity RL=8Ω Att.max4dB4dBS/N Ratio 20Hz 20KHz(DIN AUDIO)100dB100dBIdle Power Consumption40W8/1 Power Consumption(4Ω)500W300WPower Bandwidth (Half power THDN=0.5%)10Hz 40HzTHDN 20Hz 20KHz Half power0.1%Imtermodulation Distortion 60Hz; 7KHz, 4:Half power0.1%Frequency Response F=20Hz 20KHz-0.5dB/0dB/0dBChannel Spearation Half powerRL=8Ω 1KHz Att.Max input 600Ω shunt60dBResidual Noise 20Hz 20KHz(DIN AUDIO)-70dBuDamping Factor 8Ω, f=1KHz100Voltage Gain Att.max30dB26dBMaximum input Voltage22dBInput Impedance30KΩ(balance) 15KΩ(unbalance)ControlsFront pannelPower switch(on/off) attenuator(31position)×4Rear panelModel switch(STEREO/BRIDGE/PARALLEL)×2 HPF switch(off/20Hz/55Hz 12dB/otc)×2ConnectorsinputXLR-3-31 type/ch.euro-block(balance)/choutput5way binding post/chDATA PORTD-sub 15P, Monitor; output level/ch, Active/ch, Model Detect Control; Mute/chPowerAC inlet×1IndicatorsPower×1(green)Signal×4(green)Clip/Limit×4(red)Protect/Mute×4(red)Load ProtectionPower switch on/off mute, DC-fault output relay ofAmplifier Protectionthermal(heatsink temp≥90 C, V limiting(RL)≤2ΩLimitter Circuitclip limiting, THD≥%Cooling Varible-speed fanstop-50 C-variable-70 C-HiPower RequirementsUC:120V/60Hz, EU:230V 50Hz, A:240V/50HzDimensions(W×H×D)480×88×412.2mm(18-7/8×3-1/2×16-1/4)Weight10Kg(22 lbs)
